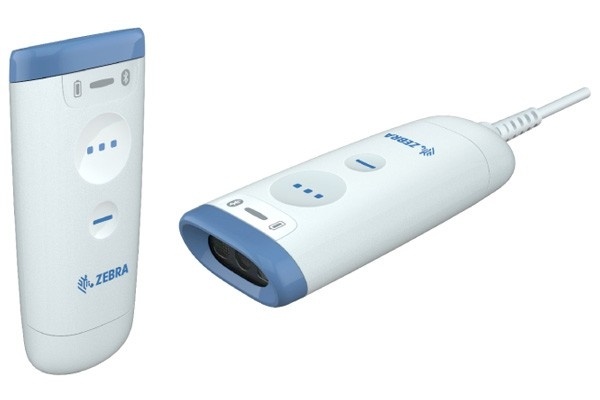

Zebra CS60-HC Corded Cordless COMPANION SCANNER


Zebra CS60-HC Corded Cordless COMPANION SCANNER

Product No.:2023815162211

  • Details

Safe LED Aimer Can Be Used Throughout the Hospital

Thanks to a highly visible and safe LED aimer, the CS60-HC can be used in the NICU, labor and delivery and mother-baby units where the use of laser aimers is not advised. And the green aimer reduces the likelihood of triggering PTSD episodes.

Flexible Feedback Modes — Including Night Mode with Vibrate

Choose the right feedback for any environment: a good decode LED, haptic feedback, a beep tone with adjustable tone/volume and Zebra’s Direct Decode Indicator that projects illumination on the barcode. In night mode, a quick press of the trigger toggles between an audible beep and vibration. Clinicians instantly know that a medicine vial or wristband was successfully scanned — while disturbing patients as little as possible.

Doubles as a Workstation Lamp

The scanner’s built-in lamp can illuminate a nurse’s workstation, so there’s no need to disturb sleeping patients by turning on the overhead lights.


Qi Inductive Charging

Support for inductive charging on the CS60-HC eliminates the need for battery contact cleaning and maintenance.1 While you get the fastest charging times with Zebra’s inductive charging solution, you’re free to use any off-the-shelf Qi wireless charging pad.

Split-Second NFC Tap-to-Pair

With built-in NFC, the CS60-HC easily pairs with other devices and in-room workstations — no IT support required.

Pocketable and Wearable for Room-to-Room Mobility

The cordless CS60-HC can be tucked in a scrub pocket and is designed to fit naturally in the hand for easy scanning. Pair the CS60-HC with the optional lanyard and silicone protector to safely and comfortably wear the scanner all shift long.

Full Shift Power and Beyond

The fully charged battery delivers 18 hours of power — more than enough for a clinician’s longest shift. Batteries can be easily replaced without special tools. And a dedicated battery gauge makes it easy for clinicians to see at a glance when it's time to change or charge a battery.

Compact Cradle Fits on Any Workstation

The presentation cradle has a compact footprint to fit on the most space-constrained workstations — whether mobile or in-room.

Extended 330 ft./100 m Range

The CS60-HC is a certified BT 5.0 device. With Class 1 Bluetooth®, users can roam up to 330 feet/100 m from the host device.

Eliminate Bluetooth Interference with Wi-FiTM Friendly Mode

Ensure that your cordless CS60-HC scanners only operate on channels that are not shared with your Wi-Fi network.

Minimize Workflow Disruptions with Anti-Loss Tools

With Zebra’s Virtual Tether, both the cradle and scanner will alert users when a device is taken out of range or left out of the cradle for an extended period of time. And if a CS60-HC is lost, simply press the cradle’s paging button to locate it.

Keep Spare Batteries on Hand with Versatile Charging Options

Multiple charging options make it easy to keep your scanners and spare batteries charged for around-the-clock operation. Four-slot device and four-slot battery chargers are compatible with Zebra’s ShareCradle charging system for easy backroom management. And single-slot scanner and battery chargers are ideal on any desk.


Easily Capture UDI Information and Blood Bag Data

Two DataCapture DNA tools make it easy for clinicians to instantly capture more data to help protect patient safety and improve inventory management. UDI Scan+ automatically parses and formats Unique Device Identification (UDI) information on medical device packaging, sending the right data in the right fields to your application. And with Blood Bag Parse+, clinicians can capture all the data required on every blood bag — including blood type, date of donation, donation location and expiration date — with a single scan.

Switch Workflows in an Instant with AutoConfig

Zebra’s AutoConfig automatically configures the CS60-HC for your workflow. For example, you can take a CS60-HC from a patient room and use it in the pharmacy, phlebotomy or lab without having to change settings. Since scanner settings are stored in the cradle base, simply pair the scanner to a different base to automatically configure it for a new host application and use case.

Up-to-the-Minute Insight into Every Aspect of Your Scanners

The logging agent’s Remote Diagnostics capabilities automate the recording of scanner asset information, health and statistics, configuration settings and barcode data — giving you the information needed for event verification, blockchain traceability, pilot site ROI generation, troubleshooting and predictive fleet-wide trend analysis.


Physical Characteristics

Dimensions Scanner
0.9 in. H x 1.8 in. W x 4.3 in. D
2.3 cm H x 4.6 cm W x 10.9 cm D
Presentation Cradle
3.5 in. H x 2.1 in. W x 2.4 in. D
9.0 cm H x 5.3 cm W x 6.1 cm D
Weight Corded CS60-HC: 2.0 oz. / 58.0 g
Cordless CS60-HC: 3.1 oz. / 87.0 g
Presentation Cradle: 3.4 oz. / 96.0 g
Input Voltage Range Scanner and presentation cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current Operating current at nominal voltage (5.0V): 400 mA (typical)
Standby current (idle) at nominal voltage (5.0V): 90 mA (typical)
Presentation Cradle: 450 mA (typical) Standard USB; 600 mA (typical) BC 1.2 USB
Color Healthcare white
Supported Host Interfaces USB Certified
Keyboard Support Supports over 90 international keyboards
FIPS Security Certification and TAA Compliance Certified compliant with FIPS 140-3;
Trade Agreement Act Compliant
User Indicators Direct Decode Indicator, Good Decode LEDs, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery gauge, dedicated Bluetooth LED

Performance Characteristics

Motion Tolerance (handheld)
Up to 20 in. / 51 cm. per second for 13 mil UPC in optimized mode
Light Source
Aiming Pattern: circular 525nm true green LED
Illumination (1) warm white LED
Imager Field of View 45° H x 34° V nominal
Image Sensor 1280 x 960 pixels
Minimum Print Contrast 20% Minimum Reflective Distance
Skew Tolerance +/- 60°
Pitch Tolerance +/- 60°
Roll Tolerance 0° - 360°
Minimum Element Resolution Code 39 - 5.0 mil

User Environment

Operating Temp.
32° F to 122° F / 0° C to 50° C
Storage Temp. -40° F to 158° F / -40° C to 70° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler (1 tumble = 0.5 cycle)
Sealing Scanner: IP65
Approved Cleaners Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.
Discharge (ESD)
Scanner and cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 10037 foot candles / 0 to 108,000 Lux

Radio Specifications

Bluetooth Radio
Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles
Adjustable Bluetooth Power
Output power adjustable down to negative 10 dBm in 8 steps
MFi MFi Certified (specific configuration required)


Battery Capacity/Type
745 mAh Lithium Polymer battery
Scans Per Battery Charge2
13,000 scans
Operating Time Per Full Charge2 18 hours

Battery Charge Time (from empty)

Standard USB Full charge: 8 hours
BC1.2 USB Full charge: 6 hours


Environmental EN 50581:2012
EN IEC 63000:2018
Electrical Safety IEC 62368-1 (Ed.2)
EN 62368-1:2014/AC:2015
LED Safety IEC 62471:2006 (Ed.1.0)
EN 62471:2008 (LED)

EN 55032:2015/AC:2016 (Class B)
EN 55035:2017
EN 61000-3-2:2014 (Class A)
EN 61000-3-3:2013
47 CFR Part 15, Subpart B, Class B


Cordless Accessories Presentation cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard
Corded Accessories Gooseneck Intellistand (weighted and standard), cup, corded USB converter

Symbol Decode Capability4

1D Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
2D Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm

Decode Ranges (Typical)3

Code 39: 5 mil 2.4 in./6.1 cm to 9.5 in./24.1 cm
Code 39: 20 mil 2.5 in./6.4 cm to 26.0 in./66.0 cm
Code 128: 5 mil 2.8 in./7.1 cm to 9.0 in./22.9 cm
PDF 417: 6.7 mil 2.4 in./6.1 cm to 8.0 in./20.3 cm
UPC: 13 mil (100%) 1.8 in./4.6 cm to 19.5 in./49.5 cm
Data Matrix: 10 mil 2.9 in./7.4 cm to 8.0 in./20.3 cm
QR: 20 mil 1.2 in./3.0 cm to 14 in./35.6 cm

Environmental Compliance

• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006


Subject to the terms of Zebra’s hardware warranty statement, the CS6080-HC scanner and CR6080-HC cradle are warranted against defects in workmanship and materials for a period of Three Years from the date of shipment.

Recommended Services

Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.


1. Contactless inductive charging is supported when a battery is inserted in the CS60-HC. Spare batteries and battery chargers have charging contacts and cannot be charged with a wireless charge pad.
2. Simulated checkout profile of 1 scan every 5 seconds.
3. Printing resolution, contrast, and ambient light dependent.
4. Refer to Product Reference Guide for complete list of symbologies.

DataCapture DNA

DataCapture DNA is a suite of highly intelligent firmware, software, utilities and apps exclusively engineered to add functionality and simplify the deployment and management of Zebra scanners.

Markets and Applications


  • Positive Patient Identification (PPID)
  • Medicine administration
  • Inventory management
  • Pharmacy
  • Electronic medical record access
  • Specimen collection
  • Phlebotomy
  • Clinicians
  • Technicians
  • Pharmacists
  • Admissions personnel
