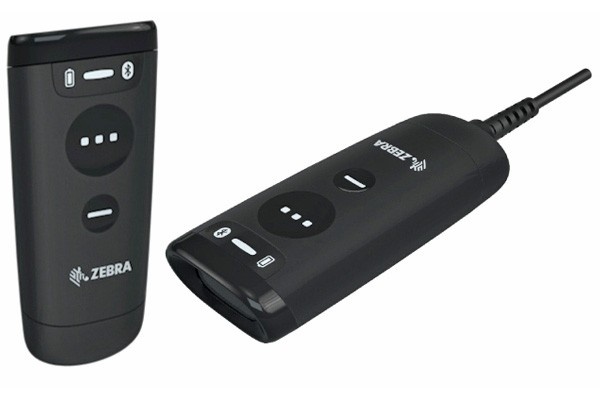

Zebra CS60 Corded Cordless COMPANION Barcode SCANNER


Zebra CS60 Corded Cordless COMPANION Barcode SCANNER

Product No.:2023815135543

  • Details

Durable for All-Day, Every-Day Use

Drop it on the floor. Spill water on it. Use it in a dusty backroom or out on the receiving dock. With best-in-class IP65 sealing and a 6 ft./1.8 m drop specification, the CS60 is engineered for durability and uptime.


QI Inductive Charging

Support for inductive charging on the CS60 eliminates the need for battery contact cleaning and maintenance.1 While you get the fastest charging times with Zebra’s inductive charging solution, you’re free to use any off-the-shelf Qi wireless charging pad to charge the CS60.

Split-Second NFC Tap-to-Pair

Pair the CS60 with any NFC-enabled device with a quick tap. Even new workers are up and running in seconds, without needing support.

Pocketable and Wearable — for When Mobility Is Essential

The cordless CS60 is designed to fit naturally in the hand or be tucked in a pocket. Pair the CS60 with the optional lanyard and silicone protector to safely and comfortably wear the scanner all shift long.

Full Shift Power and Beyond

The fully charged battery delivers 18 hours of power — more than enough for your longest shifts. Batteries can be easily replaced without special tools. And a dedicated battery gauge makes it easy to see at a glance when it's time to change or charge a battery.

Keep Spare Batteries on Hand with Versatile Charging Options

Multiple charging options make it easy to keep your scanners and spare batteries charged for around-the-clock operation. Four-slot device and four-slot battery chargers are compatible with Zebra’s ShareCradle charging system for easy backroom management. And single-slot scanner and battery chargers are ideal on any desk.

Extended 330 ft./100 m Range

The CS60 is a certified BT 5.0 device. With Class 1 Bluetooth®, users can roam up to 330 ft./100 m from the host device for greater flexibility.

Eliminate Bluetooth Interference with Wi-FiTM Friendly Mode

Ensure that your cordless CS60 scanners only operate on channels that are not shared with your Wi-Fi network.

Prevent Downtime with Anti-Loss Tools

With Zebra’s Virtual Tether, both the cradle and scanner will alert users when a device is taken out of range or left out of the cradle for an extended period of time. As a result, you won’t have to worry about a customer accidentally leaving self-checkout with a cordless scanner in their cart or an associate misplacing a scanner in the backroom. And if a CS60 is lost, simply press the cradle’s paging button to locate it.


Easily Capture Label Data for Better Inventory Management

With Label Parse+, the CS60 Series can instantly capture and parse GS1 label barcode data on items, enabling easy data capture, including expiration dates and lot number/manufacturing location.

Switch Workflows in an Instant with AutoConfig

Zebra’s AutoConfig cradle automatically configures the CS60 for your workflow. For example, you can take a CS60 from self-checkout and use it for a manned lane, customer service, inventory or receiving without having to change settings. Since scanner settings are stored in the cradle base, simply pair the scanner to a different base to automatically configure it for a new host application and use case.

Flexible Feedback Modes To Fit Your Environment

The CS60 supports a good decode LED, haptic feedback, a beep tone with adjustable tone/volume and Zebra’s Direct Decode Indicator that projects illumination on the barcode. And both haptic and audible feedback are available on the trigger touch.

Simplify the Scanning Experience

With Multi-Code Data Formatting (MDF), the CS60 can scan multiple barcodes with a single trigger pull and transmit only the barcodes you need, in the order your application expects. And with Zebra’s Preferred Symbol, the CS60 can capture and output only the preferred barcode, so workers no longer have to waste time physically covering nearby barcodes before scanning.

Up-to-the-Minute Insight Into Every Aspect of Your Scanners

The logging agent’s Remote Diagnostics capabilities automate the recording of scanner asset information, health and statistics, configuration settings and barcode data—giving you the information needed for event verification, blockchain traceability, pilot site ROI generation, troubleshooting and predictive fleet-wide trend analysis.


Physical Characteristics


0.9 in. H x 1.8 in. W x 4.3 in. D
2.3 cm H x 4.6 cm W x 10.9 cm D
Standard Cradle
4.5 in. H x 3.1 in. W x 4.2 in. D
11.3 cm H x 7.8 cm W x 10.7 cm D
Weight Corded CS60: 2.0 oz. / 56.0 g
Cordless CS60: 2.9 oz. / 83.0 g
Standard Cradle: 4.9 oz. / 138.0 g
Input Voltage Range Scanner and standard cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current Operating current at nominal voltage (5.0V): 400 mA (typical)
Standby current (idle) at nominal voltage (5.0V): 90 mA (typical)
Standard Cradle: 450 mA (typical) Standard USB; 600 mA (typical) BC 1.2 USB
Color Midnight black
Supported Host Interfaces USB Certified
Keyboard Support Supports over 90 international keyboards
FIPS Security Certification and TAA Compliance Certified Compliant with FIPS 140-3;
Trade Agreement Act Compliant
User Indicators Direct Decode Indicator, Good Decode LEDs, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery gauge, dedicated Bluetooth LED

Performance Characteristics

Motion Tolerance (handheld) Up to 20 in. / 51 cm per second for 13 mil UPC in optimized mode
Light Source Aiming Pattern: circular 525nm true green LED
Illumination (1) warm white LED
Imager Field of View 45° H x 34° V nominal
Image Sensor 1280 x 960 pixels
Minimum Print Contrast 20% Minimum Reflective Distance
Skew Tolerance +/- 60°
Pitch Tolerance  +/- 60°
Roll Tolerance 0° - 360°
Minimum Element Resolution Code 39 - 5.0 mil

User Environment

Operating Temp. 32° F to 122° F / 0° C to 50° C
Storage Temp. -40° F to 158° F / -40° C to 70° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler (1 tumble = 0.5 cycle)
Sealing Scanner: IP65
Electrostatic Discharge (ESD) Scanner and cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 10037 foot candles / 0 to 108,000 Lux

Radio Specifications

Bluetooth Radio Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles
Adjustable Bluetooth Power Output power adjustable down to negative 10 dBm in 8 steps
MFi MFi Certified (specific configuration required)


Battery Capacity/Type 745 mAh Lithium Polymer battery
Scans Per Battery Charge2 13,000 scans
Operating Time Per Full Charge2 18 hours

Battery Charge Time (from empty)

Standard USB Full Charge: 6 hours

Full Charge: 3 hours



EN 50581:2012
EN IEC 63000:2018
Electrical Safety IEC 62368-1 (Ed.2)
EN 62368-1:2014/AC:2015
LED Safety IEC 62471:2006 (Ed.1.0)
EN 62471:2008 (LED)
EMI/RFI EN 55032:2015/AC:2016 (Class B)
EN 55035:2017
EN 61000-3-2:2014 (Class A)
EN 61000-3-3:2013
47 CFR Part 15, Subpart B, Class B


Cordless Accessories

Standard cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard
Corded Accessories Gooseneck Intellistand (weighted and standard), cup, corded USB converter

Symbol Decode Capability4

1D Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN
2D Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm

Decode Ranges (Typical)3


Code 39: 5 mil 2.4 in./6.1 cm to 9.5 in./24.1 cm
Code 39: 20 mil 2.5 in./6.4 cm to 26.0 in./66.0 cm
Code 128: 5 mil 2.8 in./7.1 cm to 9.0 in./22.9 cm
PDF 417: 6.7 mil 2.4 in./6.1 cm to 8.0 in./20.3 cm
UPC: 13 mil (100%) 1.8 in./4.6 cm to 19.5 in./49.5 cm
Data Matrix: 10 mil 2.9 in./7.4 cm to 8.0 in./20.3 cm
QR: 20 mil 1.2 in./3.0 cm to 14 in./35.6 cm

Environmental Compliance

•  RoHS Directive 2011/65/EU; Amendment 2015/863
•  REACH SVHC 1907/2006


Subject to the terms of Zebra’s hardware warranty statement, the CS6080 scanner and CR6080 cradle are warranted against defects in workmanship and materials for a period of Three Years from the date of shipment.

Recommended Services

Zebra OneCare Essential and Select: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support.


1. Contactless inductive charging is supported when a battery is inserted in the CS60. Spare batteries and battery chargers have charging contacts and cannot be charged with a wireless charge pad.
2. Simulated checkout profile of 1 scan every 5 seconds.
3. Printing resolution, contrast, and ambient light dependent.
4. Refer to Product Reference Guide for complete list of symbologies.

DataCapture DNA

DataCapture DNA is a suite of highly intelligent firmware, software, utilities and apps exclusively engineered to add functionality and simplify the deployment and management of Zebra scanners.
