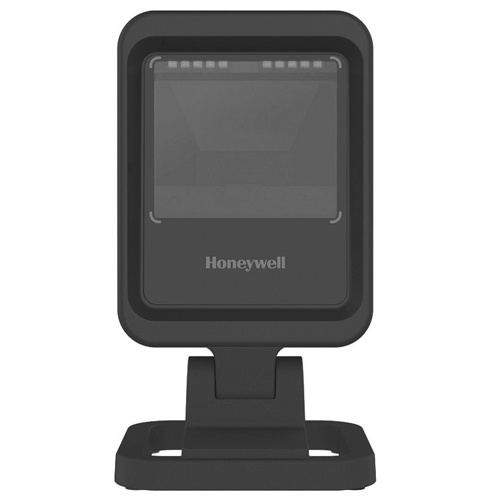

Genuine Honeywell Genesis XP 7680G qrcode scanning platform barcode scannerXP 7680G qrcode scanning platform barcode scanner


Genuine Honeywell Genesis XP 7680G qrcode scanning platform barcode scannerXP 7680G qrcode scanning platform barcode scanner

Product No.:202371811281

  • Details

The Honeywell Genesis™ XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity. Featuring extreme performance “XP” scanning technology in a flexible design that fits multiple workflows. The compact, modern design features clean lines and warm, white illumination and the small footprint is ideal for contemporary retail environments.BIG VALUE IN A SMALL PACKAGE
  • INCREASED PRODUCTIVITY. The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywell’s field proven XP technology handles poorly printed and damaged barcodes with ease. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting in fewer repeat scans, keeping employees productive and efficient.
  • FANTASTIC USER EXPERIENCE. The compact and modern design offers a contemporary experience with minimal counter space required. The 360 color LED ring highlights the scanning target area and provides clear feedback, offering an intuitive experience for both employees and customers. The scanning user experience is a key element for a delightful customer engagement. The warm, white light illumination is more pleasing to the eye, and automatic object detections turns the illumination completely off between scans, so the scanner is not a distraction.
  • FLEXIBILITY AND ADAPTABILITY. The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. In addition to the standard adjustable compact stand, smart placement accessories are now available for the Genesis XP. These new mounting accessories support wall mount, point-of-sale mount, and downward facing installations, allowing the product to be placed almost anywhere. A top mounted button is ideally placed for triggered, handheld scanning applications. A built-in auxiliary expansion port will support future smart accessories, adapting to future needs and requirements.


  • Features
    • Fantastic User Experience
    • Flexibility and Adaptability
    • Increased Productivity


  • Overall Dimensions
    • 3.2" x 1.6" x 4.1" (no stand); 3.2" x 1.6" x 5.7" (with stand)
    • 80 mm x 40 mm x 105 mm (no stand); 80 mm x 40 mm x 145 mm (with stand)


  • Skew
    • 65°
  • Maximum Brightness
    • 100,000 Lux
  • Decode Capability
    • 1D/2D
  • Motion Tolerance
    • 400 cm/s for 13 mil UPC at optimal focus
  • Scanning Range
    • Standard range (SR)
  • Print Contrast
    • 20% minimum reflectance difference
  • Scan Pattern
    • Area Image, 1,280 x 800 pixel
  • Pitch
    • 65°


  • Host System Interface
    • USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)
  • Engine Type
    • 1D/2D


  • Storage Temperature Range
    • -40° F - 158° F
    • -40°C to 70°C
  • Operating Humidity
    • 0% to 95% relative humidity, non-condensing


  • Form Factor
    • Hands Free
  • Application
    • Hands-Free, Presentation Scanning
  • Overall Height
    • 145 mm (with stand) inch
    • 5.7 in (with stand) inch
  • Overall Width
    • 3.2 in
    • 80 mm
  • Overall Depth
    • 1.6 in inch
  • Weight range
    • 12 oz keg
    • 340 g keg
  • Operating Current
    • 2.0 W (400 mA @ 5V)
  • Input Voltage
    • 5.0V DC Typical
  • Operating Temperature
    • 0°C to 50°C
    • 32° F - 122° F
  • Warranty Duration
    • 3 Years
  • Power Connector Type
    • Corded
