Power through a single USB port
No additional power supply is required when connecting via USB, reducing accessory, installation and management costs.
Easily add a handheld scanner
Do cashiers need a handheld scanner for the flexibility to scan large items in the cart? A standard USB port provides plug-in-and-go simplicity for a wide variety of auxiliary scanners.
Image capture support expands functionality and increases value

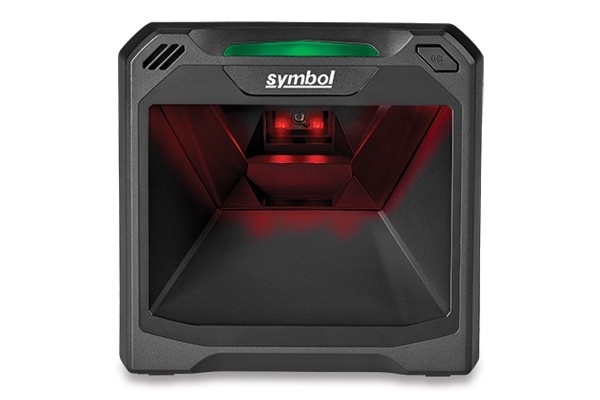

The DS7708 offers additional data capture features to further streamline your business processes. For example, workers can take a picture of a check, driver’s license or ID card to meet store requirements or industry regulations in a split second, protecting cashier productivity and throughput in the checkout line.
Superior out-of-box experience
Smart auto-host detect cables automatically determine which interface is attached, eliminating the need to scan numerous configuration bar codes. Over 90 international keyboards are supported, enabling easy setup, all around the world.
SPECIFICATIONS
Physical Characteristics
| Dimensions |
Scanner only: 5.63 in. H x 5.86 in. W x 3.81 in. D 14.3 cm H x 14.9 cm W x 9.7 cm D Scanner with Table Mount Kit: 6.06 in. H x 5.93 in. W x 3.85 in. D 15.4 cm H x 15.1 cm W x 9.8 cm D |
| Weight | 17.6 oz. / 500 g |
| Voltage and Current |
Without auxiliary scanner: Standby: 5 VDC +/-10% @ 125ma avg. Operating: 5 VDC +/-10% @ 480ma avg. With auxiliary scanner: Standby: 12 VDC +/-10% @ 100ma avg. Operating: 12 VDC +/-10% @ 400ma avg. |
| Color | Midnight Black |
| Supported Host Interfaces | USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| Auxiliary Scanner Interface | USB |
| Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation systems |
Performance Characteristics
| Swipe Speed | Up to 100 in./sec. (254 cm/sec.) |
| Light Source | Two deep red LEDs (660nm) |
| Imager Field of View |
48.0° x 36.7° (bar-code reading) 48.0° x 33.7° (image capture) |
| Image Sensor |
1280 x 960 (bar-code reading) 1280 x 880 (image capture) |
| Minimum Print Contrast | 25% minimum reflective difference |
| Roll / Pitch / Yaw (Skew) | 360˚, ±70˚, ±70˚ typical |
User Environment
| Operating Temperature | 32˚ to 104˚ F / 0˚ to 40˚ C |
| Storage Temperature | -40˚ to 158˚ F / -40˚ to 70˚ C |
| Humidity | 5% to 85% RH, non-condensing |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV Indirect (without auxiliary scanner) |
| Ambient Light Range | From darkness (0 fcd) to 450 fcd artificial light and 10,000 fcd direct sunlight |
